# Corgi Engine - Getting Started Tutorial

**Note**: To get you started using the AI Brain Graph, you should first follow the [Install instructions](../install-instructions) and check that everything is working.

### The Tutorial Scene

First of all, look for the _AIBrain\_Tutorial_ scene (and open it), that will serve as a starting point for this tutorial. Basically, it is the Corgi _RetroAI_ scene with all enemies removed (with the exception of _RetroSwordsman_).

1. Open the _Enemies_ group to check the content: you will find the _RetroSwordsman_ prefab and two other gameObjects (stripped out of all AI components): _RetroSwordsmanGenerated_ and _RetroSwordsmanPluggable._

### Creating the AI Brain Graph

To start working with the graph, you'll need to create an AI Brain Graph:

1. In the Project panel, right-click the mouse button and select _Create > The Bit Cave > AI Brain Graph_
2. Rename the newly created asset _RetroSwordman AIBrain_ (or anything you deem appropriate)
3. Double-click on the asset to open the Editor

![](https://1480578063-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LwY4qXRelZyML_CLwPb%2F-LwoGvqvfj9-CnIbRxdm%2F-LwoHTPUm4lAZ_St1ZTD%2Fcorgi_starting_tutorial_001.png?alt=media\&token=712011d7-d289-486a-a992-6080a9f4bb04)

### The RetroSwordsman AI Brain Structure

Select the _RetroSwordsman_ prefab in scene and look at the _AI Brain_, _AI Actions_ and _AI Decisions_ components: we want to replicate the same structure with the AI Brain Graph:

* The _AI Brain_ has two states: _Patrol_ and _Shooting_
* While in _Patrol_ the swordsman will perform an _AIActionPatrol_ action
* While in _Shooting_ the swordsman will perform an _AIActionShoot_ action
* The swordsman will exit the _Patrol_ state if the target is within range (_AIDecisionDetectTargetRadius_)
* The swordsman will exit the _Shooting_ state after a while (_AIDecisionTimeInState_)

To create the AI Brain Graph we will need these nodes:

* Two states
* Two transistions
* Two actions
* Two decisions

#### Creating the States

First of all, let's create the two states:

1. Right click on the AI Brain graph canvas and choose _AI > Brain State_: this will create a state
2. Right click on the node header and choose _Rename_. Rename the state _Patrol_ and select _Apply_
3. Repeat the first two steps, creating another node called _Shooting_
4. On the _Patrol_ node, click the _Set as starting state_ button: this will set the _Patrol_ node as the entry state in the character brain

{% hint style="warning" %}
Each state should always have a unique name
{% endhint %}

![](https://1480578063-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LwY4qXRelZyML_CLwPb%2F-LwoGvqvfj9-CnIbRxdm%2F-LwoH_JCiJH8TyPaiDZX%2Fcorgi_starting_tutorial_002.png?alt=media\&token=ca3f4060-58ac-4f06-a08c-7a138c816f1c)

#### Adding Transitions

Each state has a single transition, so we are going to create two and connect them with _Patrol_ and _Shooting_:

1. Right click on the Graph canvas and select _AI > Transition_: this will add a transition node
2. Click on the _transitions_ output in _Patrol_ state and drag it to the _Input_ element of the transition node
3. Repeat the first two steps for the _Shooting_ state

![](https://1480578063-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LwY4qXRelZyML_CLwPb%2F-LwoGvqvfj9-CnIbRxdm%2F-LwoHeHxcUrJy1vxYpEA%2Fcorgi_starting_tutorial_003.png?alt=media\&token=0ec6e136-333f-4601-8eae-dc14fdf17328)

#### Adding AI Decisions

The original swordsman has two decisions, each one connected with a state, so let's add them to the graph.

For the _Patrol_ state:

1. Right click on the graph canvas and select _AI > Decision > Detect Target Radius_
2. Set the _Radius_ to 4
3. Set the _Target Layer_ to _Player_
4. Connect the _Output_ element to the _Decision_ input of the patrol state _AI Transition_ node

For the _Shooting_ state:

1. Right click on the graph canvas and select _AI > Decision > Time In State_
2. Let the fields to their default values
3. Connect the _Output_ element to the _Decision_ input of the shooting state _AI Transition_ node

![](https://1480578063-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LwY4qXRelZyML_CLwPb%2F-LwoGvqvfj9-CnIbRxdm%2F-LwoHiIQXf08OLWsWVXq%2Fcorgi_staring_tutorial_004.png?alt=media\&token=35fdcce2-188d-42ea-843d-bfb3fa72d296)

#### Adding AI Actions

The swordsman has two actions, each one connected with a state: let's add them to the graph.

For the _Patrol_ state:

1. Right click on the graph canvas and select _AI > Action > Patrol_
2. Check the _Avoid Falling_ value
3. Set the _Hole Detection Offset_ x value to 1
4. Connect the _Output_ element to the _Actions_ input of the _Patrol_ state node

For the _Shooting_ state:

1. Right click on the graph canvas and select _AI > Action > Shoot_
2. Check the _Aim At Target_ value
3. Connect the _Output_ element to the _Actions_ input of the _Shooting_ state node

![](https://1480578063-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LwY4qXRelZyML_CLwPb%2F-LwoGvqvfj9-CnIbRxdm%2F-LwoHnOCHnsvkJ1noTZ8%2Fcorgi_starting_tutorial_005.png?alt=media\&token=316611af-6ddc-45f0-88d3-4dfabc6d25a3)

#### Connecting Transitions

The last step to complete the brain graph is to connect the transitions _True/False_ states. In this case we only need the _True_ ones:

1. Connect the _True State_ of the patrol _AI Transition_ to the _States in_ input of the _Shooting_ state
2. Connect the _True State_ of the shooting _AI Transition_ to the _States in_ input of the _Patrol_ state

![](https://1480578063-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LwY4qXRelZyML_CLwPb%2F-LwoGvqvfj9-CnIbRxdm%2F-LwoHrh-P46k09d1rsTN%2Fcorgi_staring_tutorial_006.png?alt=media\&token=0600b184-2e8b-4bb9-a912-bddde6897fd2)

### Generating the Character AIBrain System

We are now ready to add the brain graph to a gameObject and generate all the Corgi AI structure: we have two options for this.

#### AI Brain Generator

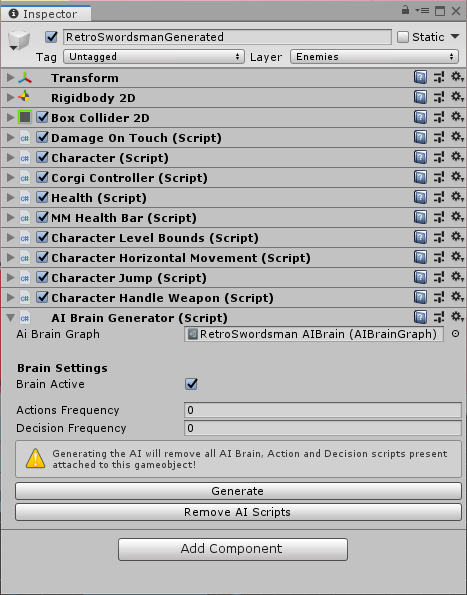

The _AI Brain Generator_ component adds a static brain structure to your character, just like you are used to do in Corgi:

1. Enable the _RetroSwordsmanGenerated_ gameObject
2. Click the _Add Component_ button and select _The Bit Cave > AI > AI Brain Generator_
3. Drag the _RetroSwordsman AIBrain_ we created above in the _AI Brain Graph_ field
4. Click the _Generate_ button and you will get the full working Corgi AI system for the _RetroSwordsman_ (try comparing it with the original prefab)

<div align="center"><img src="https://1480578063-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LwY4qXRelZyML_CLwPb%2F-LwoGvqvfj9-CnIbRxdm%2F-LwoHw_ukns-ngMfEKRI%2Fcorgi_staring_tutorial_007.png?alt=media&#x26;token=f5ccae0c-9f23-4827-899c-c57760d12afa" alt=""></div>

{% hint style="info" %}
Once you are happy with your brain, you can safely remove the AI Brain Generator component as it is not used during gameplay
{% endhint %}

#### AI Brain Pluggable

The _AI Brain Pluggable_ generates all Corgi AI system at runtime from a list of brain graphs:

1. Enable the _RetroSwordsmanPluggable_ gameObject
2. Click the _Add Component_ button and select _The Bit Cave > AI > AI Brain Pluggable_
3. Drag the _RetroSwordsman AIBrain_ in the _AI Brain Graphs_ field: this is an array of elements, so you can add more than one (one will be chosen randomly at runtime)
4. Hit the Editor _Play_ button and you should see the Corgi AI Brain structure generated

![](https://1480578063-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LwY4qXRelZyML_CLwPb%2F-LwoGvqvfj9-CnIbRxdm%2F-LwoI3Uzp8BX-bnW7N53%2Fcorgi_staring_tutorial_008.png?alt=media\&token=ccff089b-bb0c-416f-92ed-088e4236a39f)

{% hint style="warning" %}
The AI Brain Pluggable is an extension of the regular Corgi AI Brain, so you'll have to keep it in your gameObject
{% endhint %}
